BendPak HDS-14X

14,000 lb. Capacity / Extended Length / 220V Power Unit
92" Height, 130" Width, 272" Length

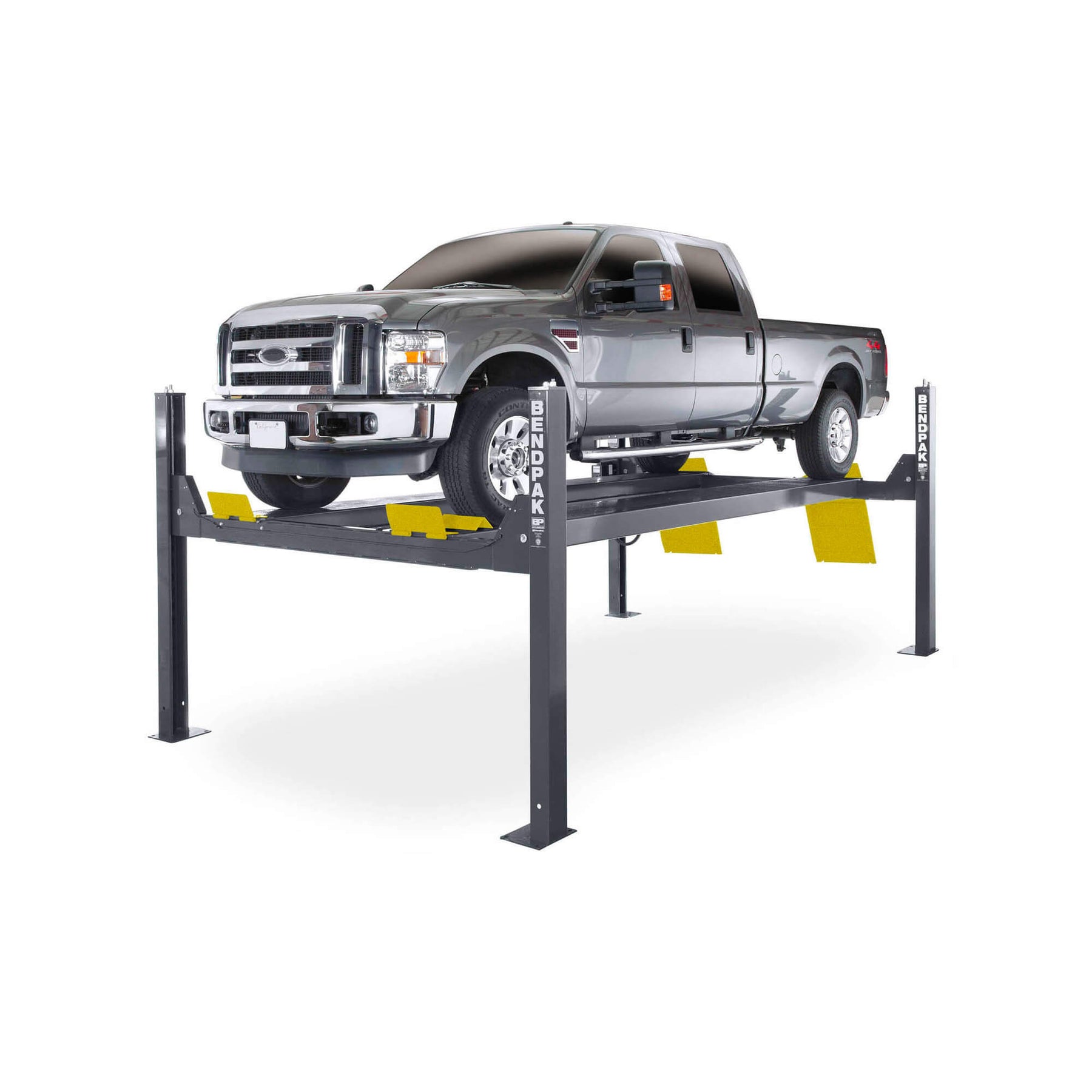

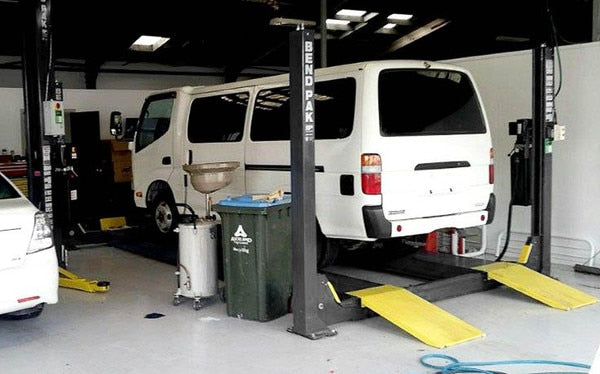

The "limo style" HDS14X lift is useful for vehicles that make use of its 229" runways. Limousines, as well as heavy-duty SUVs and trucks, need the extra length, and that’s where this heavy-duty four-post lift comes in handy. With it's 14,000-lb. lifting capacity, long runways and ample 70" rise, the HDS-14X allows most mechanics to stand upright to perform oil changes, exhaust service, wheel service and every other undercarriage activity. Add-on the optional drive-thru ramps and drip trays and you've got a lift that will leave others envious.

Lease from $209/month
Back
Back

Features

  • 14,000-lb. lifting capacity
  • Mid to long-style approach ramps for low ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway

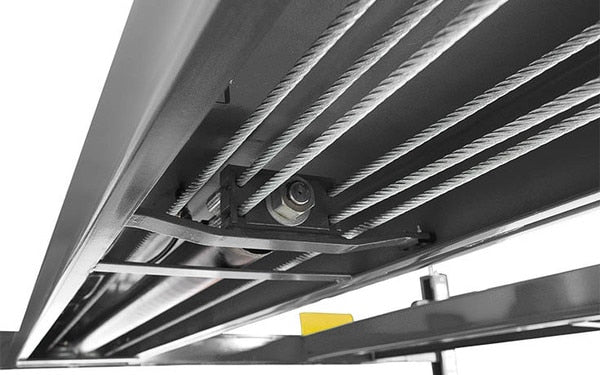

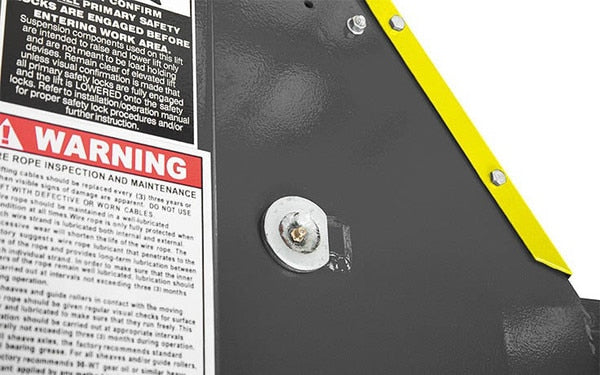

  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Features heavy-duty 1/2" aircraft cable
  • Safety locks enclosed in columns minimize pinch points

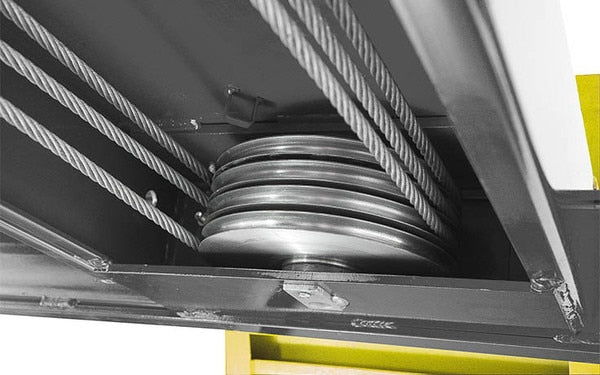

  • Oversized sheave diameter reduces cable fatigue
  • Oversized self-lubricating cable rollers
  • Rugged 1.75" roller axles
  • Multi-position safety locks in each column
  • Customizable power unit location
  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Optional drive-thru ramps available
  • Optional drip trays available

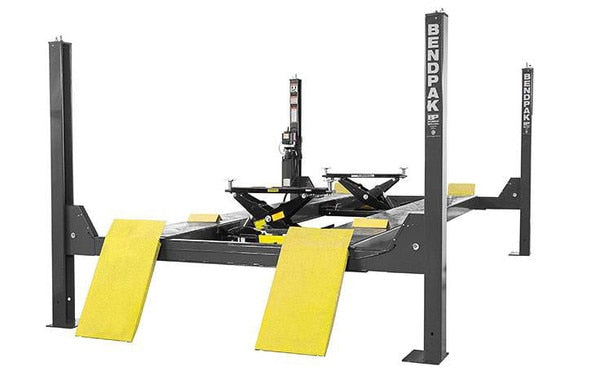

  • Optional 7,000-lb. capacity rolling jacks available (Model R​BJ7000)
  • ETL approved
Back

HDS-14X Specifications

*This diagram is intended for illustrative purposes only and should not be construed as an authoritative representation of the actual product, system or design.

Capacity

Lifting Capacity*
14,000 lbs. (6,350 kg)
*Max Capacity / Front Axle
7,000 lbs. (3,175 kg)
*Max Capacity / Rear Axle
7,000 lbs. (3,175 kg)

Rise

A - Min. Runway Height:
7.5" (191 mm)
B - Max. Rise:
70" (1,778 mm)
C - Max. Lifting Height:
77.5" (1,969 mm)
Time to Full Rise:
60 seconds

Outside Dimensions

D - Overall Width:
130" (3,302 mm)
E - Outside Length:
243" (6172 mm)
F - Overall Length:
272" (6,908 mm)
G - Height of Columns:
92" (2,337 mm)

Inside Dimensions

H - Width Between Columns:
120" (3,048 mm)
I - Drive-Thru Clearance:
98" (2,489 mm)

Runways

J - Runway Width:
20" (508 mm)
K - Length of Runways:
227.5" (5,778 mm)
L - Width Between Runways:
34.5" (876 mm) or 41.5" (1,054 mm)
M - Runway Centerline:
57.5" (1,461 mm) or 64.5" (1,638 mm)
N - Outside Edge of Runways:
77.5" (1,969 mm) or 84.5" (2,146 mm)

Minimum Wheelbase

Rated Capacity:
170" (4,318 mm)
75% Capacity:
145" (3,683 mm)
50% Capacity:
120" (3,048 mm)
25% Capacity:
95" (2,413 mm)

Locking

Locking Positions:
15
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
