BendPak HD-9XW

9,000 lb. Capacity / Standard Width / Extended Length / High Rise

100" Height, 110.25" Width, 224" Length

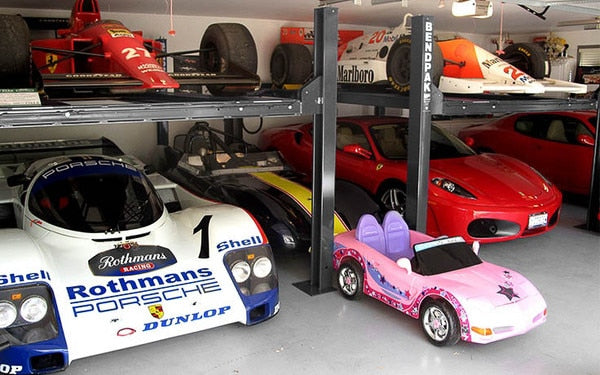

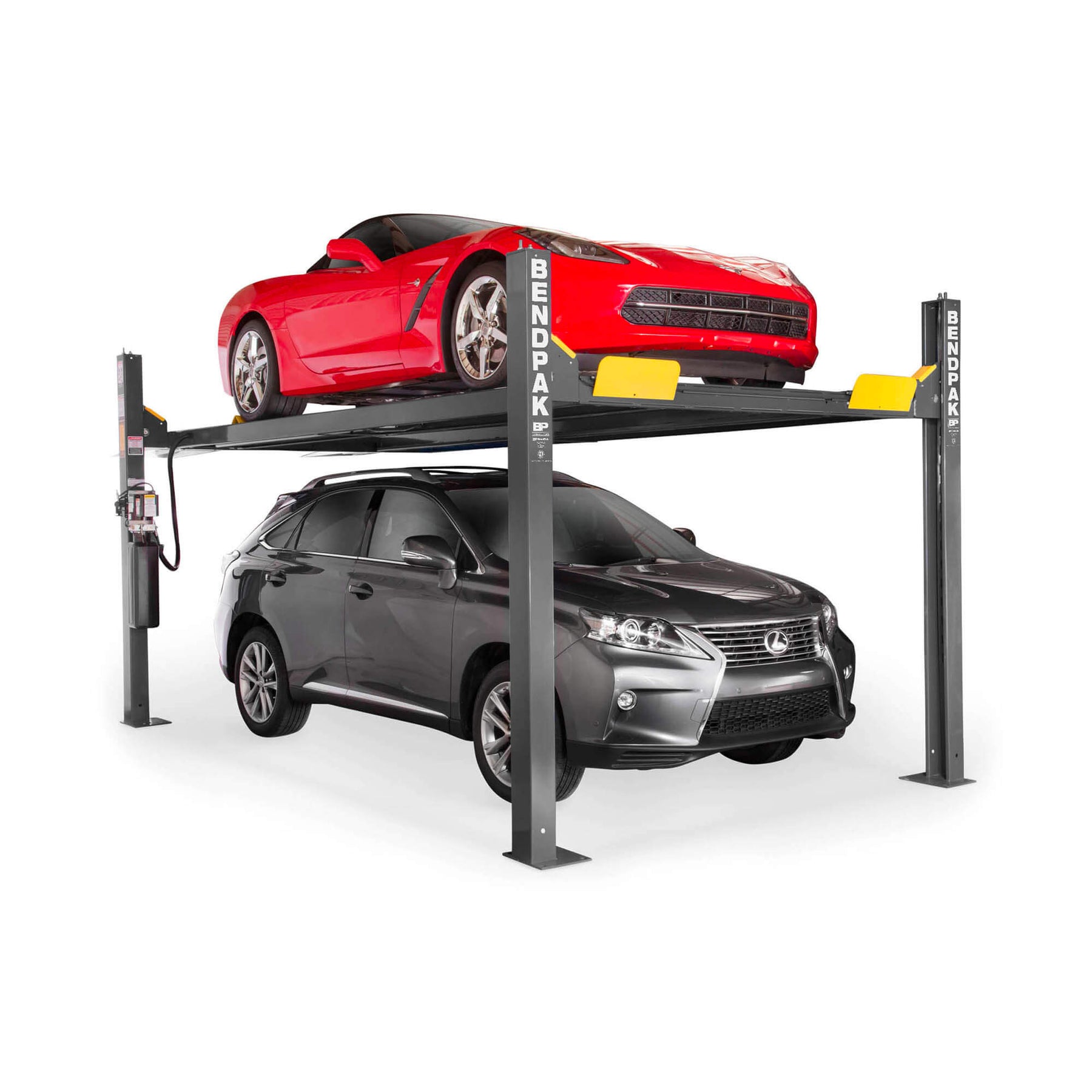

The HD-9XW is a standard width, extra-tall lift that offers ample overhead clearance and enough side room to park light-duty trucks, SUVs and virtually all low ground-clearance vehicles. With it's 9,000-lb. lifting capacity, we’re proud to be able to say the HD-9XW is arguably one of our most versatile and user-friendly lifts for serious DIY’ers and shop owners around - so it's no wonder this lift is seen in shops nationwide and across the globe.
Lease from $140/month
Back
Back

Features

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Freestanding design
  • High-rise

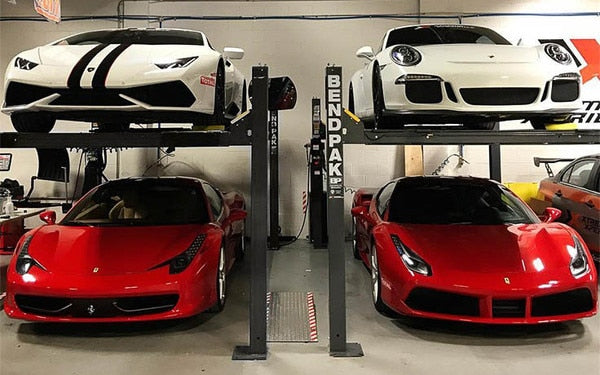

  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric-hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column

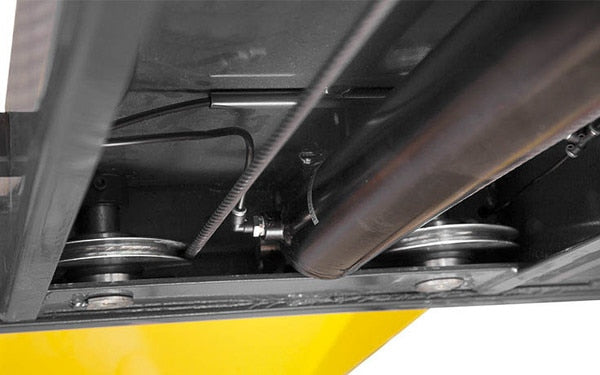

  • Oversized self-lubricating cable rollers

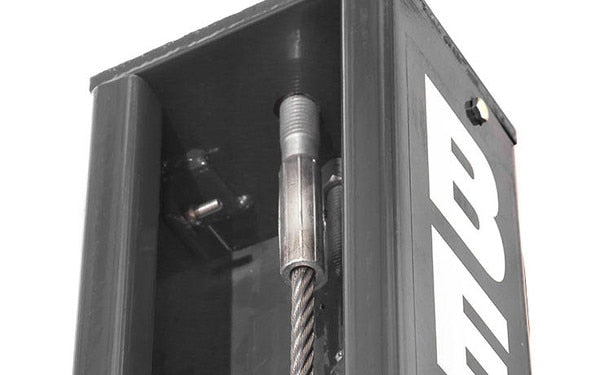

  • Features heavy-duty 3/8" aircraft cable

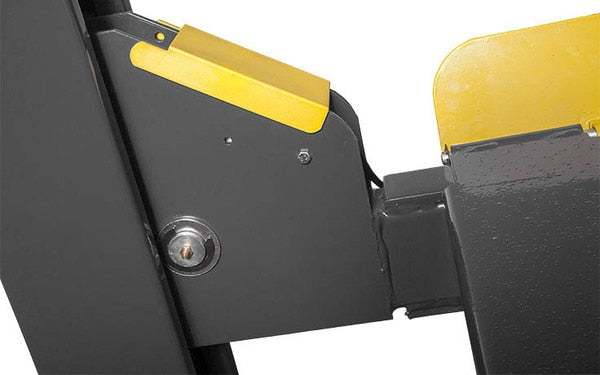

  • Rugged 1.25" roller axles

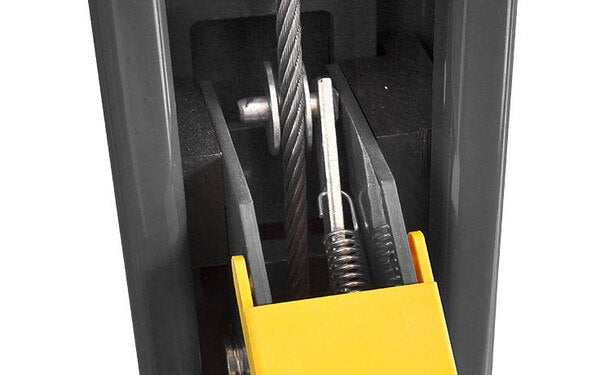

  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location

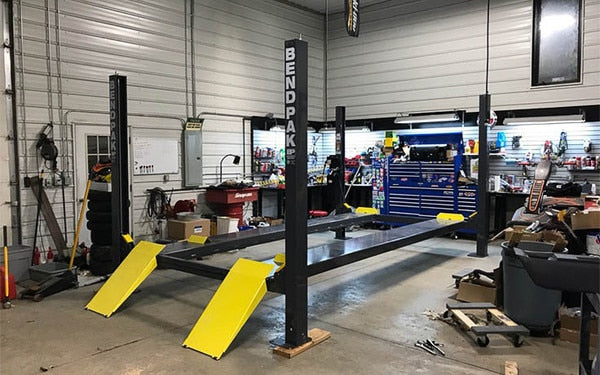

  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles available
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved
Back

HD-9XW Specifications

*This diagram is intended for illustrative purposes only and should not be construed as an authoritative representation of the actual product, system or design.

Capacity

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)

Rise

A - Min. Runway Height:
4.5" (114 mm)
B - Max. Clearance On Top Lock:
82" (2,083 mm)
C - Max. Lifting Height:
86.5" (2,197 mm)
Time to Full Rise:
50 seconds

Outside Dimensions

D - Overall Width:
110.25" (2,800 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length:
224" (5,690 mm)
G - Height of Columns:
100" (2,540 mm)

Inside Dimensions

H - Width Between Columns:
100.25" (2,546 mm)
I - Drive-Thru Clearance:
86.5" (2,197 mm)

Runways

J - Runway Width:
19" (483 mm)
K - Length of Runways:
188" (4,775 mm)
L - Width Between Runways:
37.5" (953 mm) or 44.375" (1,127 mm)
M - Runway Centerline:
56.5" (1,435 mm) or 63.375" (1,610 mm)
N - Outside Edge of Runways:
75.5" (1,918 mm) or 82.375" (2,092 mm)

Minimum Wheelbase

Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)

Locking

Locking Positions:
15
Lock Spacing:
Every 4" / 102 mm

Power Unit

Motor:
220 VAC / 60 Hz. 1Ph.
Noise:
45 dB

Shipping

Weight:
2,040
Dimensions:
204" x 22" x 40" / 5,182 mm x 559 mm x 1,016 mm

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
